General Notes on Blind Rivets
A blind rivet is a mechanical fastener capable of joining workpieces together from one side of the assembly only. Below are a selection of commentaries on the product details, and are intended for general guidance only. No responsibility for the contents can be accepted.

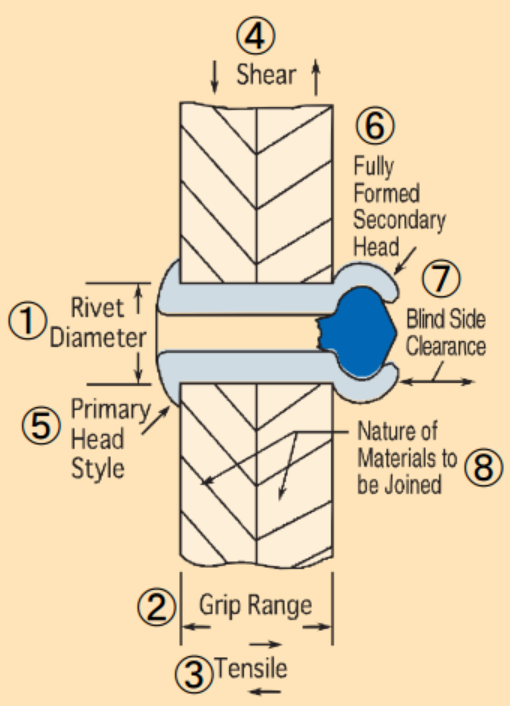

Rivet selection factors to consider
• a. Rivet Joint strength
First determine the single-joint tensile and shear values required for the application. These are functions of total joint strength, fastener spacing, rivet body material and rivet diameter. Then refer to the "Shear" and "Tensile" columns on the product, and select a TOP brand rivet that provides the values required. "TOP" brand rivets are not certified for structural aerospace applications and such use is not recommended.
• b. Joint thickness
Measure the total thickness of the materials to be joined. This determines the required "grip" of the rivet you select. Refer to the "Grip Range" column and select a rivet with a grip range that includes the work thickness required. Remember that insufficient rivet length will not allow proper formation of the secondary head at the back of the work.
• c. Nature of rivets' materials
Both the rivet and the materials to be fastened will affect the ultimate joint strength. As a general rule, the rivet materials should have the same physical and mechanical properties as the materials to be fastened, because a marked dissimilarity may cause joint failure due either to material fatigue or galvanic corrosion.
• d. Hole size
Hole size can be important in blind riveting. Too small a hole will, of course, make rivet insertion difficult. Best practice is to follow the hole size recommendations provided.
• e. Rivet Head Style
The low-profile dome head rivet is appropriate for most applications. However, when soft or brittle materials are fastened to a rigid backing member, the large flange head rivet should be considered, because it offers twice the bearing. surface. Where a flush surface is required, the countersunk head rivet style should be selected.
